Kenwood DNX9190DABS

AV navigation with 6.8 inch high definition display

Kenwood DNX9190DABS is not only equipped with built-in Garmin Navigation for easier driving but is also high-resolution audio ready. Sound quality enthusiasts will love the playback support of various types of music formats, including compatibility with FLAC files. Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.

By connecting your smartphone and receiver wirelessly, your driving time will be more fun and convenient.

Expand all +

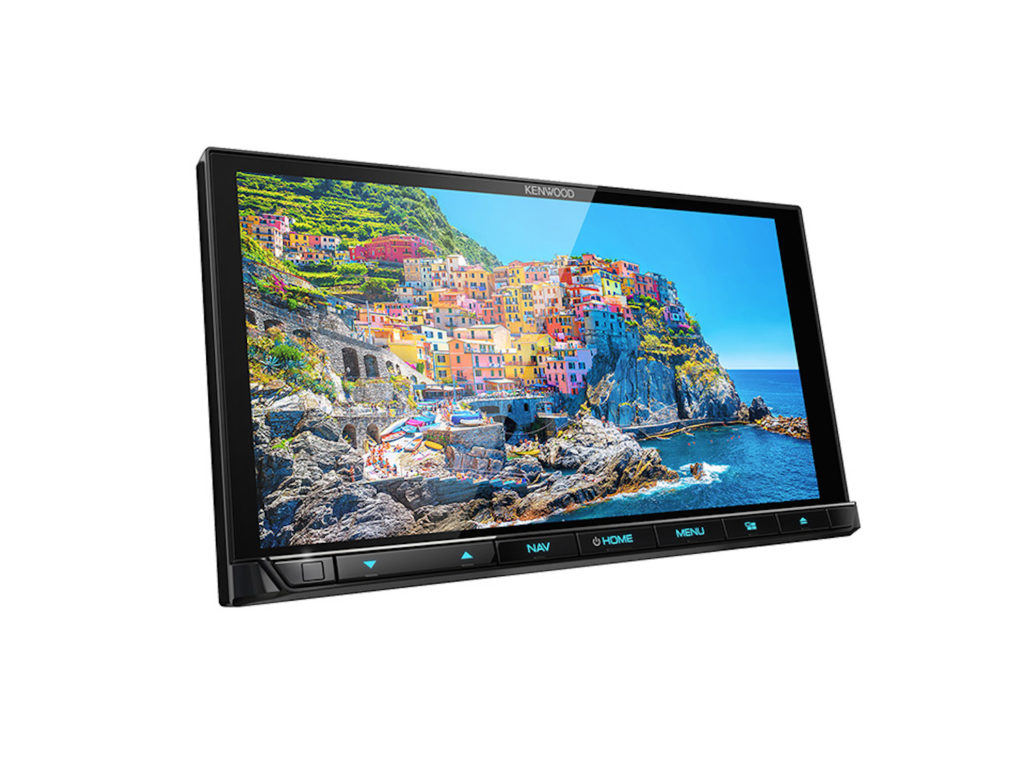

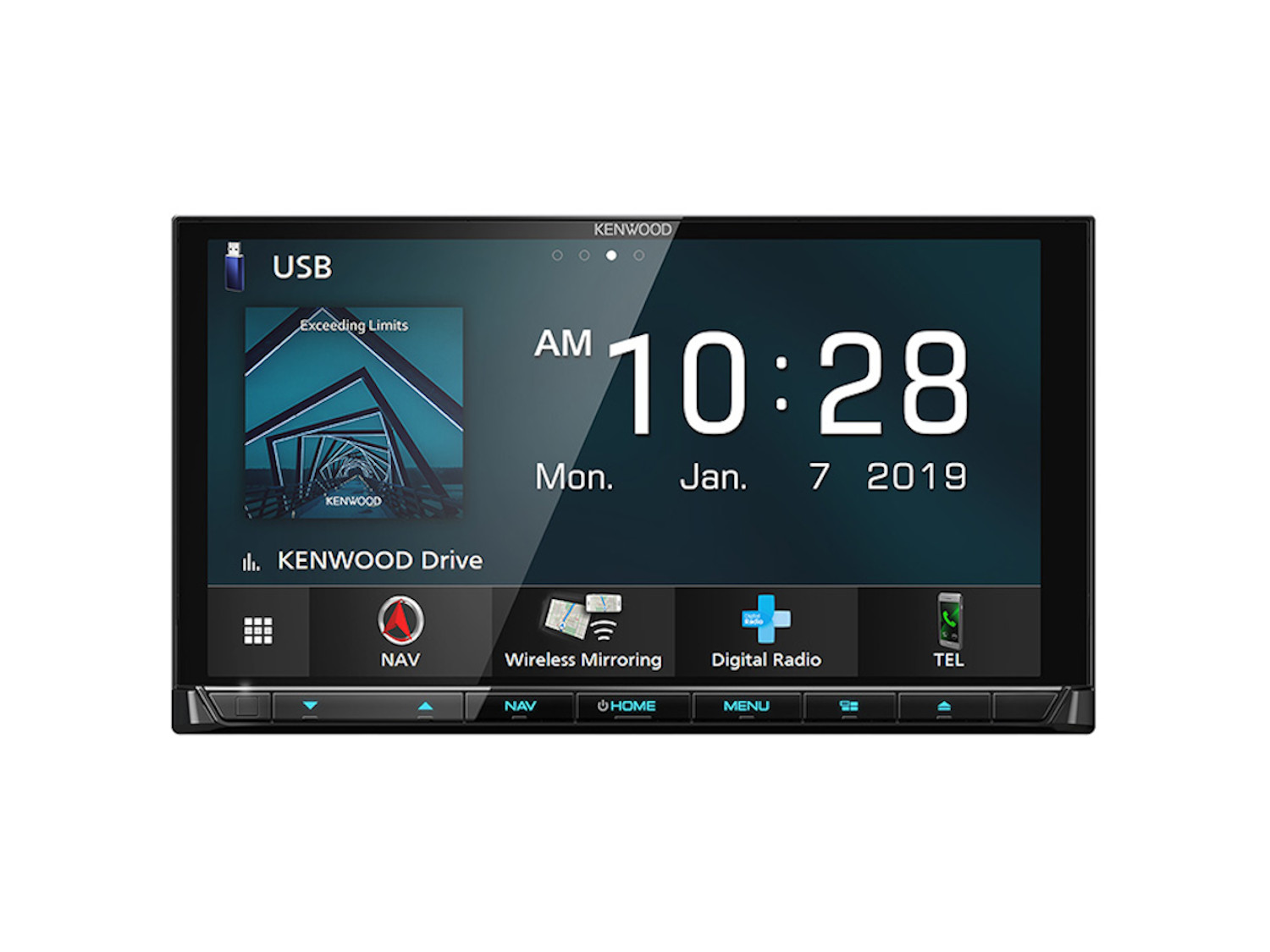

Gallery

Swipe left and right to scroll through photos

Product details

MonitorSection	Picture size		6.75 inches(diagonal) wide
	W x H		152.1 mm x 79.5 mm
	Display system		AAS LCD panel
	Drive system		TFT active matrix system
	Number of pixels		2,764,800 1280H x 720V x RGB
	Effective pixels		99.99%
	Pixel arrangement		RGB striped arrangement
	Back lighting		LED
DVDSection	D/A Converter		24 / 32Bit
	Audio Decoder		Linear PCM Dolby Audio MP3 / WMA / AAC / WAV / FLAC / Vorbis
	Video Decoder		MPEG1/2,MPEG4 / WMV / H.264 / MKV
	Wow & Flutter		Below Measurable Limit
	Frequency response	96k Sampling	20 – 44,000 Hz
		48k Sampling	20 – 22,000 Hz
		44.1k Sampling	20 – 20,000 Hz
	Total harmonic distortion 1kHz		0.010%
	Signal to Noise ratio		90.5dB (DVD-Video 96k)
	Dynamic range		89dB (DVD-Video 96k)
	DISC Format		DVD-Video / VIDEO-CD / CD-DA
	Quantifying bit number		16 / 20 / 24bit
USB I/F Section	USB Standard		USB2.0 High Speed
	File System		FAT 16/32, exFAT, NTFS
	Maximum Power Supply Current		DC5V=1.5A
	D/A Converter		24/32Bit
	Audio Decoder		MP3 / WMA / AAC / WAV / FLAC / Vorbis
	Video Decoder		MPEG1/2,MPEG4 / WMV / H.264 / MKV
Wireless Mirroring Section	Mode		Sink
	Copyright protection		HDCP2.2
	Touch Control		UIBC
Wi-Fi	IEEE Standard		802.11 a/b/g/n/ac
	Frequency Range		Dual Band ( 2.4GHz / 5GHz )
	Channels		Auto(1-11ch) Auto(149,153,157,161ch)
	Transfer rates (MAX)		11a: 54 Mbps / 11b: 11 Mbps / 11g: 54 Mbps / 11n: 300 Mbps / 11ac: 867 Mbps
	Output Power	2.4GHz/SISO	11b:14dBm±2dB / 11g:13dBm±2dB / 11n(20MHz):12dBm±2dB
		5GHz/SISO	11a:9dBm±2dB / 11n(20MHz):9dBm±2dB / 11n(40MHz):8dBm±2dB / 11ac(20MHz):9dBm±2dB / 11ac(40MHz):8dBm±2dB / 11ac(80MHz):8dBm±2dB
		5GHz/MIMO	11n(20MHz):11dBm±2dB / 11n(40MHz):11dBm±2dB / 11ac(20MHz):11dBm±2dB / 11ac(40MHz):11dBm±2dB / 11ac(80MHz):11dBm±2dB
Bluetooth Section	Technology		Bluetooth Ver5.0
	Frequency		2.402 – 2.480 GHz
	RF Output Power (E.I.R.P.)		+4dBm (MAX), Power Class 2
	Maximum Communication range		Line of sight approx.10m(32.8ft)
	Audio Codec		SBC / AAC
	Multi Profile Support		Multi Profile
	Profile		HFP (V1.7) (Hands Free Profile) SPP (Serial Port Profile) A2DP (Advanced Audio Distribution Profile) AVRCP (V1.6) (Audio/Video Remote Control Profile) PBAP (Phonebook Access Profile)
HDMI	Connector Type		Type A
	Input Resolution		VGA (640x480p @59.94Hz/60Hz) 480p (720x480p @59.94Hz/60Hz) 720p(1280x720p 59.94Hz/60Hz)
	Input Audio Type		32K/44.1K/48K/88.2K/96K/176.2K/192K 16/20/24-bit Linear PCM
DSP Section	Graphics equalizer	BAND	13Band
		frequency (Hz) (BAND1-13)	62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
		Gain	-9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]
	2Way X’Over	HIGH PASS FILTER frequency	Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
		SLOPE	-6/-12/-18/-24[dB/Oct.]
		LOW PASS FILTER frequency	30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
		SLOPE	-6/-12/-18/-24[dB/Oct.]
	3Way X’Over	HIGH PASS FILTER frequency	250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k
		SLOPE	-12/-18/-24[dB/Oct.]
		Band PASS FILTER frequency	Through/50/60/70/80/90/100/120/150/180/220/250/300[Hz] 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/Through
		SLOPE	-12/-18/-24[dB/Oct.]
		LOW PASS FILTER frequency	30/40/50/60/70/80/90/100/120/150/Through[Hz]
		SLOPE	-12/-18/-24[dB/Oct.]
	Position	Front / Rear /Subwoofer Delay	0 – 6.1m (0.01m Step)
	Position	Gain	-8 to 0dB
	Subwoofer Level		-50 to +10dB
FM	Frequency Range (Frequency step)		87.5MHz – 108.0MHz (50kHz)
	Usable sensitivity S/N30dB		9.3dBf 0.8μV/75Ω
	Quieting sensitivity DIN S/N 46dB		15.2dBf 1.6μV / 75Ohms
	Frequency response (±3.0dB)		30Hz – 15kHz
	S/N (dB)		65dB (MONO)
	Selectivity		Over 80dB (±400kHz)
	Stereo separation		45dB (1kHz)
AM	Frequency Range (Frequency step)		531kHz – 1701kHz (9kHz)
AM	Usable sensitivity		28dBμ
DAB	Frequency Range		BAND III: 174.928MHz – 239.200MHz
	Sensitivity		-100dBm
	S/N		90dB
DAB Antenna Connector	Connector type		SMB
	Output Voltage		12V DC
	Maximum Current		<100mA
Video	Color system of external video input		NTSC/PAL
	External video input level (Mini jacks)		1 Vp-p / 75 Ohms
	External audio max input level (Mini jacks)		2 V / 25 kOhms
	Video Input level (RCA jacks)		1 Vp-p / 75 Ohms
	Video Output level (RCA jacks)		1 Vp-p / 75 Ohms
	Audio Output level (Mini jacks)		0.9 V / 10 kOhms
Audio	Maximum Power Output (Front&Rear)		50Wx4
	Typical Power Output (Front&Rear)		Full Bandwidth Power (at less than 1%THD) 22Wx4
	Output frequency band		20 – 88,000Hz
	Preout level (V)		5V / 10kOhms
	Preout impedance (Ω)		=< 300 Ohms
	Speaker Impedance (Ω)		4-8 Ohms
Navigation Section	Receiver		High-sensitivity GNSS receiver
	Receiving frequency		GPS：1575.42MHz GLONASS：1598．0625～1605.375 (C/A code )
	Acquisition Times		Cold: 26 seconds(typ)
	Acquisition Times		All satellites at -130dBm Without aiding
	Update Rate		1/second, continuous
	Accuracy		Position: < 2.0meters,CEP, at -130dBm
	Accuracy		Velocity: 0.05meter/sec
	Positioning Method		GPS/GLONASS
	Antenna		External GNSS Antenna
General	Operating voltage		12V DC Car Battery
	Maximum Current consumption		15A
	Installation Dimensions WxHxD		178mm x 100mm x 160mm
	Operational temperature range		-10°C to +60°C
	Weight	Main unit	2.5 kg

Manufacturer		Product model	DNX9190DABS
Condition	New	SKU	DNX9190DABS

Price	1890	Stock	In stock

Manufacturer information

More detailed information on this product can be viewed on the manufacturers website.

https://www.kenwood.com/au/car/visual_navigation/dnx9190dabs/
