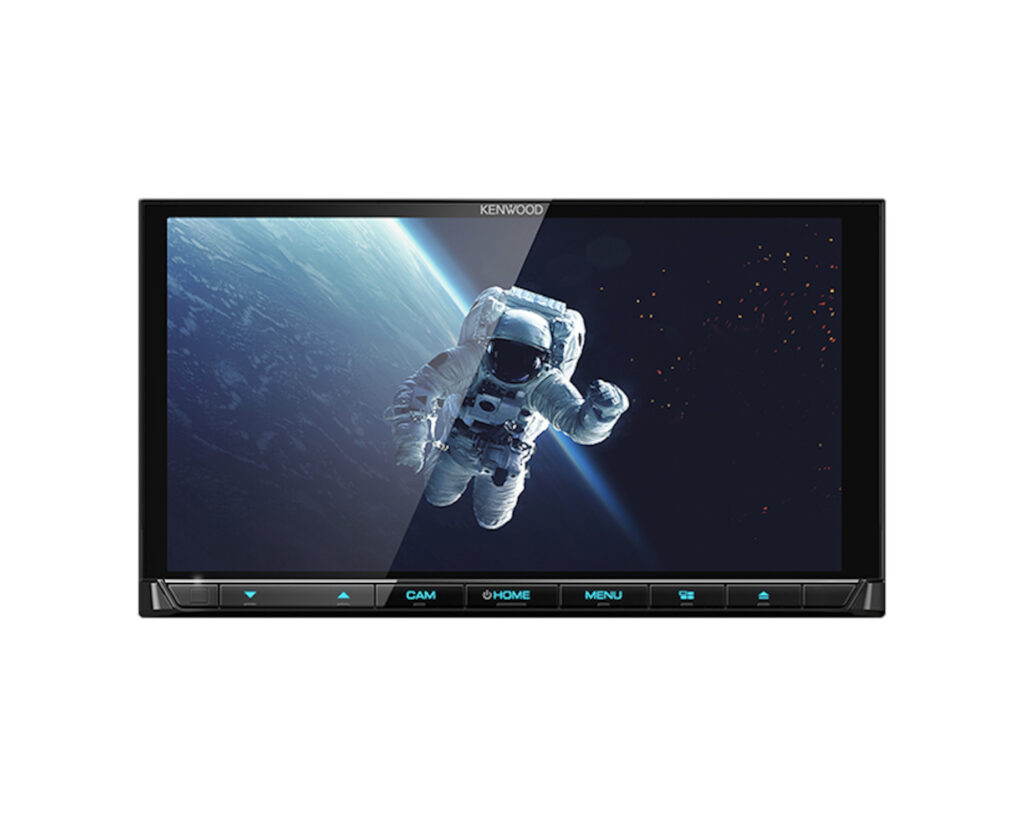

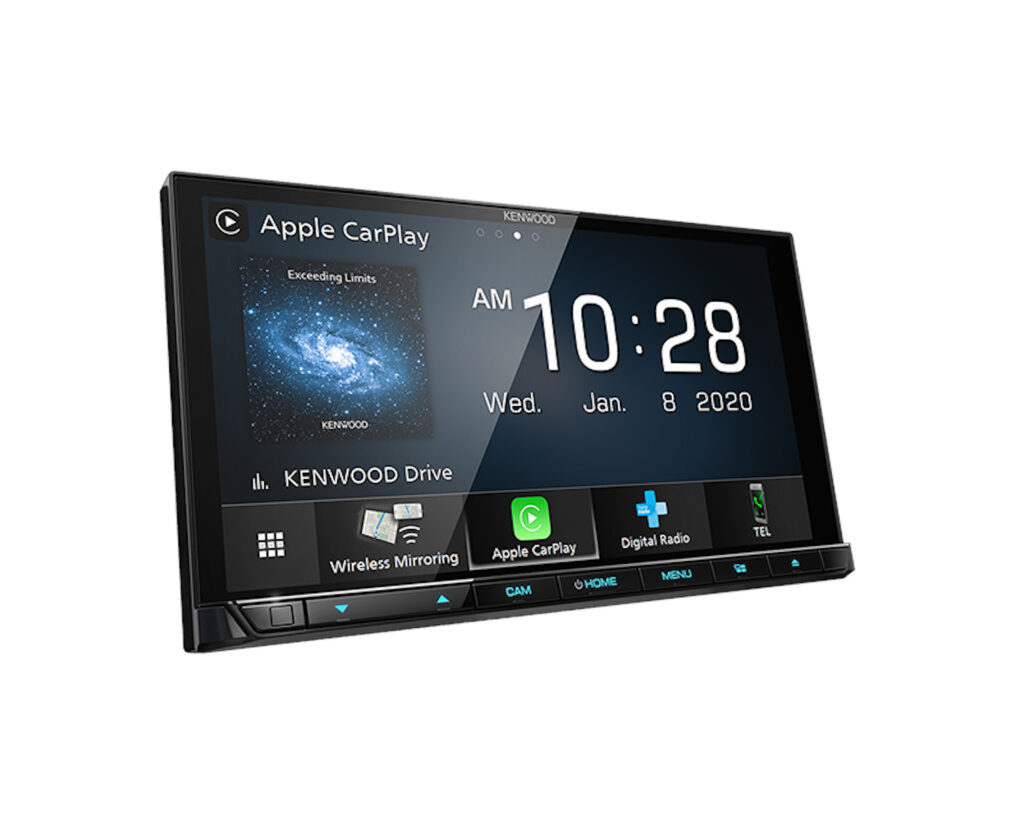

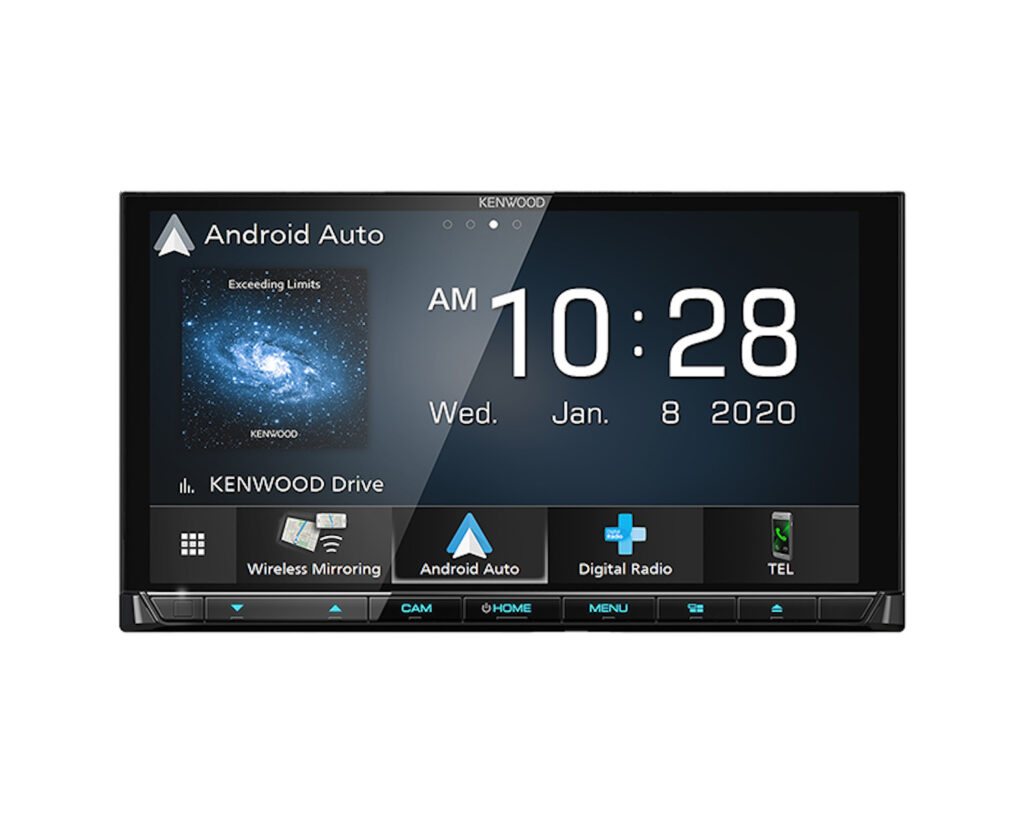

Kenwood DDX9020DABS

AV Receiver with 6.8 inch high definition display

Usual price:	$1,199.00
You save:	+ $50.00

Swipe left and right to scroll through photos

Main Unit
Monitor Section	Picture size	6.75 inches(diagonal) wide
	W x H	152.1 mm x 79.5 mm
	Display system	AAS LCD panel
	Drive system	TFT active matrix system
	Number of pixels	2,764,800
	Number of pixels	1280H x 720V x RGB
	Effective pixels	99.99%
	Pixel arrangement	RGB striped arrangement
	Back lighting	LED
DVD Section	D/A Converter	24 / 32Bit
	Audio Decoder	Linear PCM
		Dolby Audio
		MP3 / WMA / AAC / WAV / FLAC / Vorbis
	Video Decoder	MPEG1/2,MPEG4 / WMV / H.264 / MKV
	Wow & Flutter	Below Measurable Limit
	Frequency response 96k Sampling	20 – 44,000 Hz
	48k Sampling	20 – 22,000 Hz
	44.1k Sampling	20 – 20,000 Hz
	Total harmonic distortion 1kHz	0.010%
	Signal to Noise ratio	90.5dB (DVD-Video 96k)
	Dynamic range	89dB (DVD-Video 96k)
	DISC Format	DVD-Video / VIDEO-CD / CD-DA
	Quantifying bit number	16 / 20 / 24bit
USB I/F Section	USB Standard	USB2.0 High Speed
	File System	FAT 16/32, exFAT, NTFS
	Maximum Power Supply Current	DC5V=1.5A
	D/A Converter	24/32Bit
	Audio Decoder	MP3 / WMA / AAC / WAV / FLAC / Vorbis
	Video Decoder	MPEG1/2,MPEG4 / WMV / H.264 / MKV
Wireless Mirroring Section	Mode	Sink
	Copyright protection	HDCP2.2
	Touch Control	UIBC
Wi-Fi	IEEE Standard	802.11 a/b/g/n/ac
	Frequency Range	Dual Band ( 2.4GHz / 5GHz )
	Channels	Auto(1-11ch)
	Channels	Auto(149,153,157,161ch)
	Transfer rates (MAX)	11a: 54 Mbps / 11b: 11 Mbps /
		11g: 54 Mbps / 11n: 300 Mbps /
		11ac: 867 Mbps
	Output Power 2.4GHz/SISO	11b:14dBm±2dB / 11g:13dBm±2dB /
	Output Power 2.4GHz/SISO	11n(20MHz):12dBm±2dB
	Output Power 5GHz/SISO	11a:9dBm±2dB /
		11n(20MHz):9dBm±2dB / 11n(40MHz):8dBm±2dB /
		11ac(20MHz):9dBm±2dB / 11ac(40MHz):8dBm±2dB / 11ac(80MHz):8dBm±2dB
	Output Power 5GHz/MIMO	11n(20MHz):11dBm±2dB / 11n(40MHz):11dBm±2dB /
	Output Power 5GHz/MIMO	11ac(20MHz):11dBm±2dB / 11ac(40MHz):11dBm±2dB / 11ac(80MHz):11dBm±2dB
Bluetooth Section	Technology	Bluetooth Ver5.0
	Frequency	2.402 – 2.480 GHz
	RF Output Power (E.I.R.P.)	+4dBm (MAX), Power Class 2
	Maximum Communication range	Line of sight approx.10m(32.8ft)
	Audio Codec	SBC / AAC / LDAC
	Multi Profile Support	Multi Profile
	Profile	HFP (V1.7) (Hands Free Profile)
		SPP (Serial Port Profile)
		A2DP (Advanced Audio Distribution Profile)
		AVRCP (V1.6) (Audio/Video Remote Control Profile)
		PBAP (Phonebook Access Profile)
DSP Section	Graphics equalizer
	BAND	13Band
	frequency (Hz) (BAND1-13)	62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
	Gain	-9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]
	2Way X’Over
	HIGH PASS FILTER frequency	Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
	SLOPE	-6/-12/-18/-24[dB/Oct.]
	LOW PASS FILTER frequency	30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
	SLOPE	-6/-12/-18/-24[dB/Oct.]
	3Way X’Over
	HIGH PASS FILTER frequency	250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k
	SLOPE	-12/-18/-24[dB/Oct.]
	Band PASS FILTER frequency	Through/50/60/70/80/90/100/120/150/180/220/250/300[Hz]
	Band PASS FILTER frequency	250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/Through
	SLOPE	-12/-18/-24[dB/Oct.]
	LOW PASS FILTER frequency	30/40/50/60/70/80/90/100/120/150/Through[Hz]
	SLOPE	-12/-18/-24[dB/Oct.]
	Position
	Front / Rear /Subwoofer Delay	0 – 6.1m (0.01m Step)
	Gain	-8 to 0dB
	Subwoofer Level	-50 to +10dB
FM	Frequency Range	87.5MHz – 108.0MHz
	(Frequency step)	(50kHz)
	Usable sensitivity	9.3dBf
	S/N30dB	0.8μV/75Ω
	Quieting sensitivity	15.2dBf
	DIN S/N 46dB	1.6μV / 75Ohms
	Frequency response	30Hz – 15kHz
	(±3.0dB)
	S/N (dB)	65dB (MONO)
	Selectivity	Over 80dB (±400kHz)
	Stereo separation	45dB (1kHz)
AM	Frequency Range	531kHz – 1701kHz
	(Frequency step)	(9kHz)
	Usable sensitivity	28dBμ
DAB	Frequency Range	BAND III: 174.928MHz – 239.200MHz
	Sensitivity	-100dBm
	S/N	90dB
DAB	Connector type	SMB
Antenna	Output Voltage	12V DC
Connector	Maximum Current	<100mA
Video	Color system of external video input	NTSC/PAL
	External video input level (Mini jacks)	1 Vp-p / 75 Ohms
	External audio max input level (Mini jacks)	2 V / 25 kOhms
	Video Input level (RCA jacks)	1 Vp-p / 75 Ohms
	Video Output level (RCA jacks)	1 Vp-p / 75 Ohms
	Audio Output level (Mini jacks)	0.9 V / 10 kOhms
	Analog RGB input	–
Audio	Maximum Power Output (Front&Rear)	50Wx4
	Typical Power Output (Front&Rear)	Full Bandwidth Power
		(at less than 1%THD)
		22Wx4
	Output frequency band	20 – 88,000Hz
	Preout level (V)	5V / 10kOhms
	Preout impedance (Ω)	=< 300 Ohms
	Speaker Impedance (Ω)	4-8 Ohms
General	Operating voltage	12V DC Car Battery
	Installation Dimensions WxHxD	178mm x 100mm x 160mm
	Weight Main unit	2.4 kg

Manufacturer	Kenwood	Product model	DDX9020DABS
Condition	New	SKU	DDX9020DABS

Price	1149	Stock	In stock
